Sheaves and Pulleys
Sheaves and pulleys at Baart come in three BlackStar lines: V-belt sheaves, timing belt pulleys and high-torque drive pulleys. Baart also stocks the BlackStar QD, split taper and TL bushings that fit them.
BlackStar Sheave and Pulley Materials and Applications

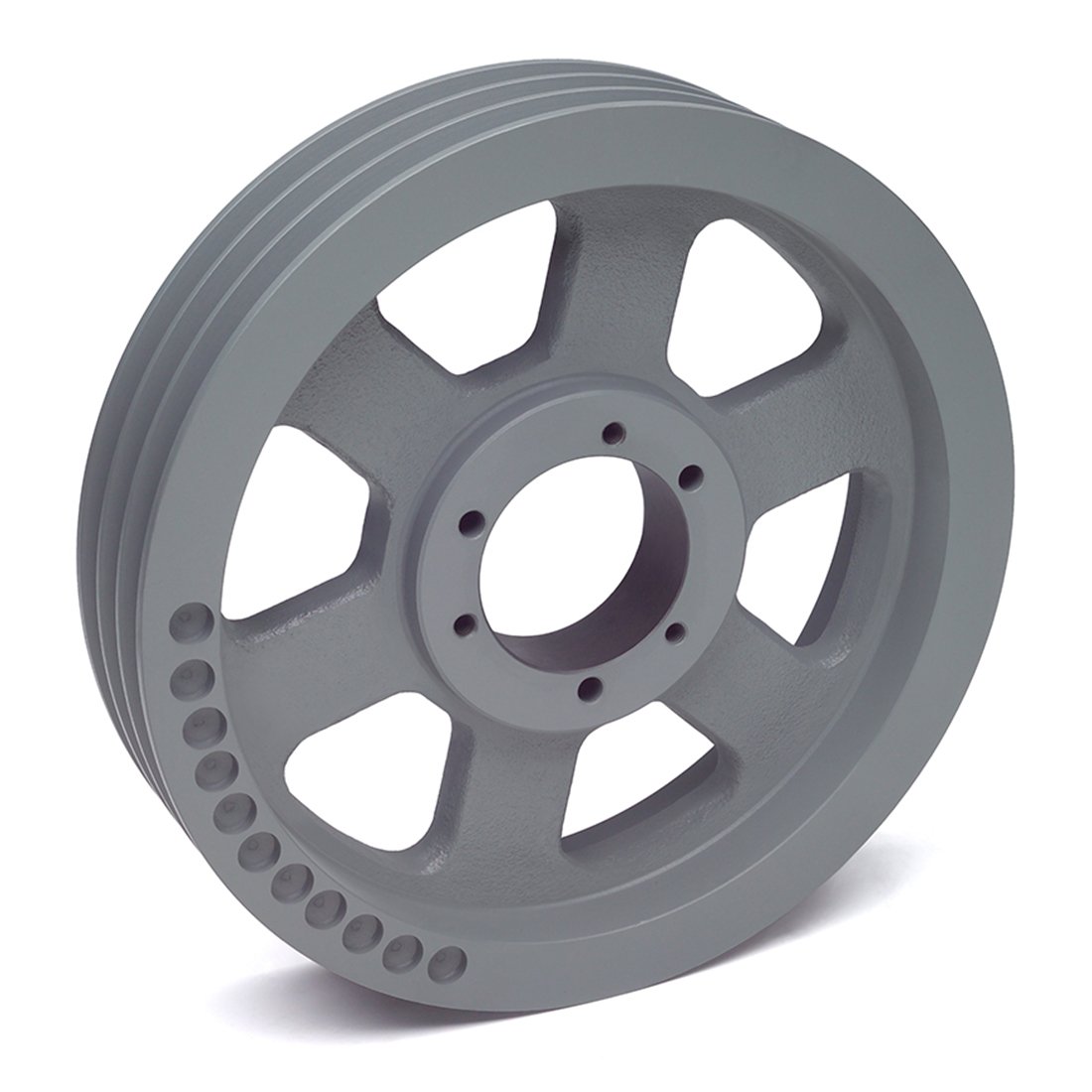

BlackStar V-belt sheaves are Grade 35 cast iron for added strength and wear resistance. Each one is phosphate coated and painted for corrosion resistance, and it's balanced for smoother operation and longer bearing life.
Choose V-belt sheaves for quieter operation and less maintenance in applications that don't need high torque. You also get slip protection during shock loads or jams. In lower-torque applications, sheaves are the preferred choice over chain and sprocket systems.
Both pulley lines are machine cut from SAE 1045 steel for more wear resistance and a longer service life. Use timing belt pulleys for efficient load handling, consistent movement and directional control in heavy lifting and load-moving applications.
Belt Sections and Bore Options
Classical B and C belts and narrow 3V, 5V and 8V belts all fit BlackStar V-belt sheaves. You can order them with up to 12 grooves. Each sheave comes with a finished bore or a bushed bore for QD, split taper or TL bushings.

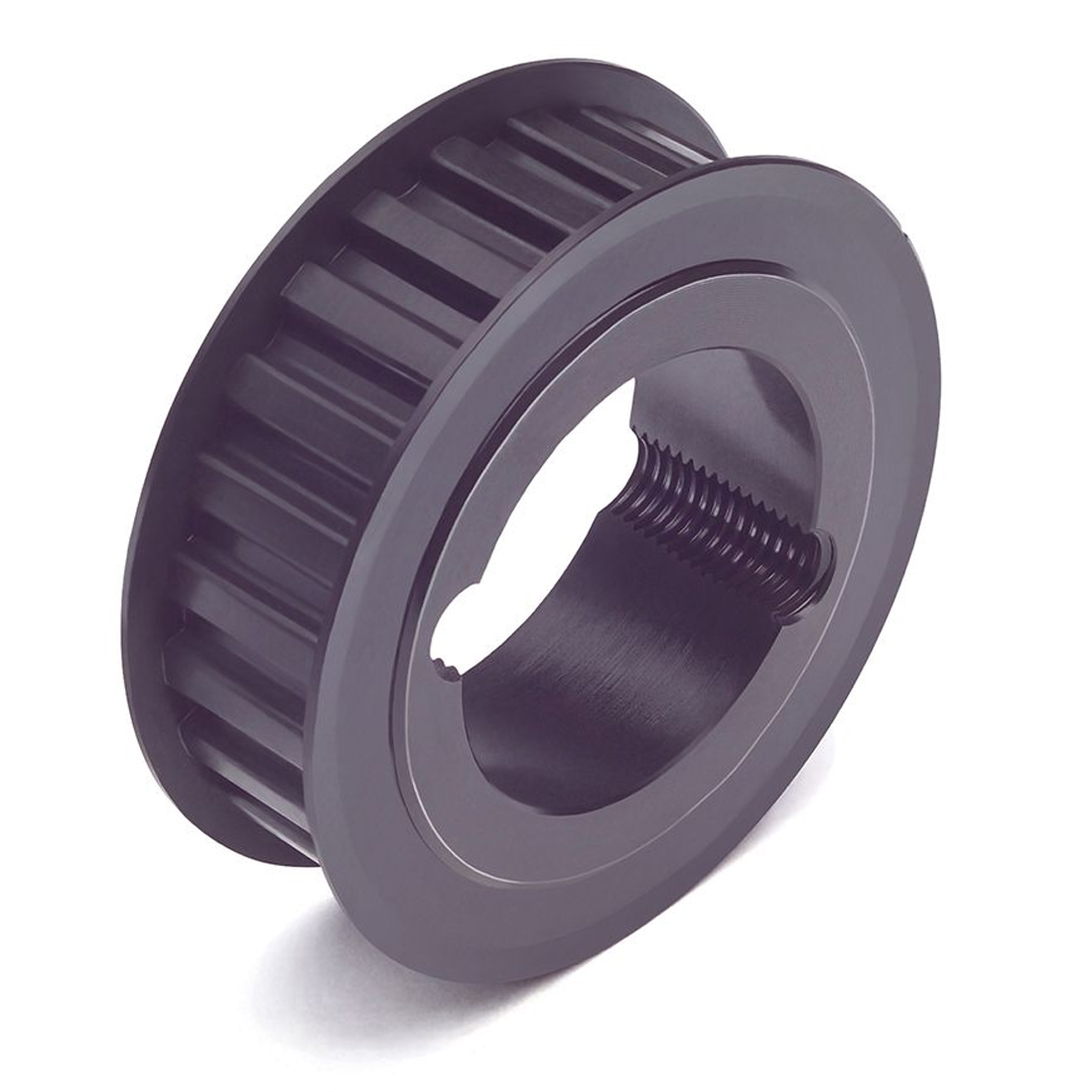

Pulley options include XL, L and H series timing belt pulleys and 5 mm, 8 mm and 14 mm pitch high-torque drive pulleys. Bushed versions of both lines are bored for QD or TL bushings. You can also order plain-bore versions.
Sheaves and Pulleys FAQs
How Do I Identify Steel BlackStar Sheaves and Bushings?
Look for STL at the end of the part number. Steel versions are available for many V-belt sheaves and QD bushings.
Should I Choose Timing Belt Pulleys or High-Torque Drive Pulleys?
Pick trapezoidal-tooth timing belt pulleys for consistent speed with no belt slip. For more horsepower capacity, use high-torque drive pulleys with larger curvilinear teeth.
Can I Use BlackStar High-Torque Drive Pulleys in Place of HTD Pulleys?
Yes, Baart lists them as a drop-in replacement for HTD pulleys in 5 mm, 8 mm and 14 mm pitches.
